W4RTS6 -Stainless 316 Reducing Tee Sch 40 Butt Weld
W4RTS6


316 Stainless Steel Reducing Tee Schedule 40 Butt Weld Fittings


Stainless Material: ASTM A403/A960

Dimensions: ASME B16.9/MSS SP-43

Manufacturing: ISO 9001:2008

Meets: MSS SP-43
SS316 Reducing Tee Schedule 40 Butt Weld Fittings

Item# Item Name Our Price Qty Add
W4RTS6-12-08 W4RTS6-12-08 | 3/4" x 1/2" Reducing Tee Sch 40 Weld - 316 Stainless
$117.71
W4RTS6-16-08 W4RTS6-16-08 | 1" x 1/2" Reducing Tee Sch 40 Weld - 316 Stainless
$118.09
W4RTS6-16-12 W4RTS6-16-12 | 1" x 3/4" Reducing Tee Sch 40 Weld - 316 Stainless
$119.08
W4RTS6-20-12 W4RTS6-20-12 | 1 1/4" x 3/4" Reducing Tee Sch 40 Weld - 316 Stainless
$352.03
W4RTS6-20-16 W4RTS6-20-16 | 1 1/4" x 1" Reducing Tee Sch 40 Weld - 316 Stainless
$332.42
W4RTS6-24-08 W4RTS6-24-08 | 1 1/2" x 1/2" Reducing Tee Sch 40 Weld - 316 Stainless
$194.72
W4RTS6-24-12 W4RTS6-24-12 | 1 1/2" x 3/4" Reducing Tee Sch 40 Weld - 316 Stainless
$192.38
W4RTS6-24-16 W4RTS6-24-16 | 1 1/2" x 1" Reducing Tee Sch 40 Weld - 316 Stainless
$147.67
W4RTS6-24-20 W4RTS6-24-20 | 1 1/2" x 1 1/4" Reducing Tee Sch 40 Weld - 316 Stainless
$220.97
W4RTS6-32-08 W4RTS6-32-08 | 2" x 1/2" Reducing Tee Sch 40 Weld - 316 Stainless
$290.37
W4RTS6-32-12 W4RTS6-32-12 | 2" x 3/4" Reducing Tee Sch 40 Weld - 316 Stainless
$293.21
W4RTS6-32-16 W4RTS6-32-16 | 2" x 1" Reducing Tee Sch 40 Weld - 316 Stainless
$138.11
W4RTS6-32-20 W4RTS6-32-20 | 2" x 1 1/4" Reducing Tee Sch 40 Weld - 316 Stainless
$415.62
W4RTS6-32-24 W4RTS6-32-24 | 2 " x 1 1/2" Reducing Tee Sch 40 Weld - 316 Stainless
$124.95
W4RTS6-40-16 W4RTS6-40-16 | 2 1/2 " x 1" Reducing Tee Sch 40 Weld - 316 Stainless
$86.49
W4RTS6-40-20 W4RTS6-40-20 | 2 1/2" x 1 1/4" Reducing Tee Sch 40 Weld - 316 Stainless
$423.40
W4RTS6-40-24 W4RTS6-40-24 | 2 1/2" x 1 1/2" Reducing Tee Sch 40 Weld - 316 Stainless
$118.05
W4RTS6-40-32 W4RTS6-40-32 | 2 1/2" x 2" Reducing Tee Sch 40 Weld - 316 Stainless
$350.33
W4RTS6-48-16 W4RTS6-48-16 | 3" x 1" Reducing Tee Sch 40 Weld - 316 Stainless
$408.22
W4RTS6-48-20 W4RTS6-48-20 | 3" x 1 1/4" Reducing Tee Sch 40 Weld - 316 Stainless
$717.13
W4RTS6-48-24 W4RTS6-48-24 | 3" x 1 1/2" Reducing Tee Sch 40 Weld - 316 Stainless
$256.96
W4RTS6-48-32 W4RTS6-48-32 | 3" x 2" Reducing Tee Sch 40 Weld - 316 Stainless
$211.58
W4RTS6-48-40 W4RTS6-48-40 | 3" x 2 1/2" Reducing Tee Sch 40 Weld - 316 Stainless
$370.30
W4RTS6-64-24 W4RTS6-64-24 | 4" x 1 1/2" Reducing Tee Sch 40 Weld - 316 Stainless
$551.54
W4RTS6-64-32 W4RTS6-64-32 | 4" x 2" Reducing Tee Sch 40 Weld - 316 Stainless
$479.34
W4RTS6-64-40 W4RTS6-64-40 | 4" x 2 1/2" Reducing Tee Sch 40 Weld - 316 Stainless
$433.61
W4RTS6-64-48 W4RTS6-64-48 | 4" x 3" Reducing Tee Sch 40 Weld - 316 Stainless
$354.50
W4RTS6-80-48 W4RTS6-80-48 | 5" x 3" Reducing Tee Sch 40 Weld - 316 Stainless
$966.61
W4RTS6-80-64 W4RTS6-80-64 | 5" x 4" Reducing Tee Sch 40 Weld - 316 Stainless
$804.14
W4RTS6-96-32 W4RTS6-96-32 | 6" x 2" Reducing Tee Sch 40 Weld - 316 Stainless
$765.73
W4RTS6-96-40 W4RTS6-96-40 | 6" x 2 1/2" Reducing Tee Sch 40 Weld - 316 Stainless
$982.03
W4RTS6-96-48 W4RTS6-96-48 | 6" x 3" Reducing Tee Sch 40 Weld - 316 Stainless
$769.82
W4RTS6-96-64 W4RTS6-96-64 | 6" x 4" Reducing Tee Sch 40 Weld - 316 Stainless
$761.49
W4RTS6-96-80 W4RTS6-96-80 | 6" x 5" Reducing Tee Sch 40 Weld - 316 Stainless
$990.47
W4RTS6-128-48 W4RTS6-L128-48 | 8" x 3" Reducing Tee Sch 40 Weld - 316 Stainless
$832.67
W4RTS6-128-64 W4RTS6-L128-64 | 8" x 4" Reducing Tee Sch 40 Weld - 316 Stainless
$771.84
W4RTS6-128-96 W4RTS6-L128-96 | 8" x 6" Reducing Tee Sch 40 Weld - 316 Stainless
$580.73
W4RTS6-160-64 W4RTS6-L160-64 | 10" x 4" Reducing Tee Sch 40 Weld - 316 Stainless
$1,713.04
W4RTS6-160-96 W4RTS6-L160-96 | 10" x 6" Reducing Tee Sch 40 Weld - 316 Stainless
$1,884.34
W4RTS6-160-128 W4RTS6-L160-L128 | 10" x 8" Reducing Tee Sch 40 Weld - 316 Stainless
$1,713.04
W4RTS6-192-128 W4RTS6-L192-128 | 12" x 8" Reducing Tee Sch 40 Weld - 316 Stainless
$2,317.48
W4RTS6-192-160 W4RTS6-L192-160 | 12" x 10" Reducing Tee Sch 40 Weld - 316 Stainless
$1,113.64
W4RTS6-192-96 W4RTS6-L192-96 | 12" x 6" Reducing Tee Sch 40 Weld - 316 Stainless
$2,106.80
Check the items you wish to purchase, then click


Product Details:

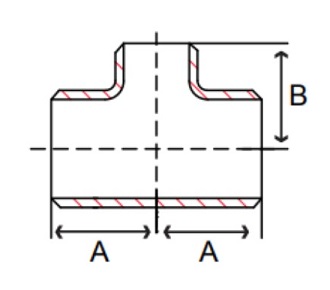

Dimensional Drawing:
Product ID Size (in) A (in) B (in) Weight (lb)
W4RTS6-12-08 3/4 x 1/2 1.13 1.13 0.3
W4RTS6-16-08 1 x 1/2 1.50 1.50 0.5
W4RTS6-16-12 1 x 3/4 1.50 1.50 0.5
W4RTS6-20-12 1-1/4 x 3/4 1.88 1.88 1.1
W4RTS6-20-16 1-1/4 x 1 1.88 1.88 1.1
W4RTS6-24-08 1-1/2 x 1/2 2.25 2.25 1.6
W4RTS6-24-12 1-1/2 x 3/4 2.25 2.25 1.6
W4RTS6-24-16 1-1/2 x 1 2.25 2.25 1.6
W4RTS6-24-20 1-1/2 x 1-1/4 2.25 2.25 1.7
W4RTS6-32-08 2 x 1/2 2.50 1.75 2.4
W4RTS6-32-12 2 x 3/4 2.50 1.75 2.4
W4RTS6-32-16 2 x 1 2.50 2.00 2.4
W4RTS6-32-20 2 x 1-1/4 2.50 2.25 2.4
W4RTS6-32-24 2 x 1-1/2 2.50 2.38 2.5
W4RTS6-40-16 2-1/2 x 1 3.0 2.25 4.1
W4RTS6-40-24 2-1/2 x 1-1/2 3.0 2.63 4.2
W4RTS6-40-32 2-1/2 x 2 3.0 2.75 4.3
W4RTS6-48-16 3 x 1 3.38 2.63 6.1
W4RTS6-48-20 3 x 1-1/4 3.38 2.75 6.2
W4RTS6-48-24
3 x 1-1/2 3.38 2.88 6.2
W4RTS6-48-32 3 x 2 3.38 3.00 6.4
W4RTS6-48-40 3 x 2-1/2 3.38 3.25 6.5
W4RTS6-64-24 4 x 1-1/2 4.13 3.38 9.7
W4RTS6-64-32 4 x 2 4.13 3.25 9.8
W4RTS6-64-40 4 x 2-1/2 4.13 3.75 10.0
W4RTS6-64-48 4 x 3 4.13 3.88 10.2
W4RTS6-80-48 5 x 3 4.88 4.38 17.8
W4RTS6-80-64 5 x 4 4.88 4.63 18.6
W4RTS6-96-32 6 x 2 5.63 4.75 20.3
W4RTS6-96-40 6 x 2-1/2 5.63 4.75 20.3
W4RTS6-96-48 6 x 3 5.63 4.88 26.3
W4RTS6-96-64 6 x 4 5.63 5.13 21.3
W4RTS6-96-80 6 x 5 5.63 5.38 21.8

Cross Reference:
INTERCHANGEABLE WITH PART NUMBER
Titan Fittings ASCI
W4RTS6-12-08 S2046RT006004
W4RTS6-16-08 S2046RT010004
W4RTS6-16-12 S2046RT010006
W4RTS6-20-12 S2046RT012006
W4RTS6-20-16 S2046RT012010
W4RTS6-24-08 S2046RT014004
W4RTS6-24-12 S2046RT014006
W4RTS6-24-16 S2046RT014010
W4RTS6-24-20 S2046RT014012
W4RTS6-32-08 S2046RT020004
W4RTS6-32-12 S2046RT020006
W4RTS6-32-16 S2046RT020010
W4RTS6-32-20 S2046RT020012
W4RTS6-32-24 S2046RT020014
W4RTS6-40-16 S2046RT024010
W4RTS6-40-24 S2046RT024014
W4RTS6-40-32 S2046RT024020
W4RTS6-48-16 S2046RT030010
W4RTS6-48-20 S2046RT030012
W4RTS6-48-24 S2046RT030014
W4RTS6-48-32 S2046RT030020
W4RTS6-48-40 S2046RT030024
W4RTS6-64-24 S2046RT040014
W4RTS6-64-32 S2046RT040020
W4RTS6-64-40 S2046RT040024
W4RTS6-64-48 S2046RT040030
W4RTS6-80-48 S2046RT050030
W4RTS6-80-64 S2046RT050040
W4RTS6-96-32 S2046RT060020
W4RTS6-96-40 S2046RT060024
W4RTS6-96-48 S2046RT060030
W4RTS6-96-64 S2046RT060040
W4RTS6-96-80 S2046RT060050
