Home > Steel Adapters and Hose Ends > Steel Adapters > JIC / AN Thread >

2406
2406 sold by Titanfittings.com

Alternative Views:

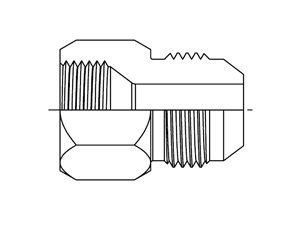

37° Female JIC x 37° JIC Male Tube Expander - Reducer
2406 JIC fitting interchange to the following manufacturers:

* Aeroquip 2015

* Aeroquip 221501

* Weatherhead C5015

* SAE 070123

* Parker Hydraulics TRTX

* Parker TRTXN
37° Female JIC x 37° JIC Male Tube Expander - Reducer

Item# Item Name Our Price Qty Add
2406-04-02 2406-04-02 | 2406-04-02 | Tube Expander-Reducer 1/4" JIC (7/16"-20 thread) Female x 1/8" JIC (5/16"-24 thread) Male
$3.36
2406-04-04 2406-04-04 | 2406-04-04 | Tube Expander-Reducer 1/4" JIC (7/16"-20 thread) Female x 1/4" JIC (7/16"-20 thread) Male
$3.88
2406-04-06 2406-04-06 | 2406-04-06 | Tube Expander-Reducer 1/4" JIC (7/16"-20 thread) Female x 3/8" JIC (9/16"-18 thread) Male
$4.27
2406-04-08 2406-04-08 | 2406-04-08 | Tube Expander-Reducer 1/4" JIC (7/16"-20 thread) Female x 1/2" JIC (3/4"-16 thread) Male
$32.80
2406-05-04 2406-05-04 | 2406-05-04 | Tube Expander-Reducer 5/16" JIC (1/2"-20 thread) Female x 1/4" JIC (7/16"-20 thread) Male
$14.16
2406-05-06 2406-05-06 | 2406-05-06 | Tube Expander-Reducer 5/16" JIC (1/2"-20 thread) Female x 3/8" JIC (9/16"-18 thread) Male
$16.71
2406-06-04 2406-06-04 | 2406-06-04 | Tube Expander-Reducer 3/8" JIC (9/16"-18 thread) Female x 1/4" JIC (7/16"-20 thread) Male
$1.60
2406-06-05 2406-06-05 | 2406-06-05 | Tube Expander-Reducer 3/8" JIC (9/16"-18 thread) Female x 5/16" JIC (1/2"-20 thread) Male
$9.01
2406-06-08 2406-06-08 | 2406-06-08 | Tube Expander-Reducer 3/8" JIC (9/16"-18 thread) Female x 1/2" JIC (3/4"-16 thread) Male
$3.50
2406-08-04 2406-08-04 | 2406-08-04 | Tube Expander-Reducer 1/2" JIC (3/4"-16 thread) Female x 1/4" JIC (7/16"-20 thread) Male
$3.15
2406-08-06 2406-08-06 | 2406-08-06 | Tube Expander-Reducer 1/2" JIC (3/4"-16 thread) Female x 3/8" JIC (9/16"-18 thread) Male
$2.28
2406-08-10 2406-08-10 | 2406-08-10 | Tube Expander-Reducer 1/2" JIC (3/4"-16 thread) Female x 5/8" JIC (7/8"-14 thread) Male
$12.33
2406-08-12 2406-08-12 | 2406-08-12 | Tube Expander-Reducer 1/2" JIC (3/4"-16 thread) Female x 3/4" JIC (1 1/16"-12 thread) Male
$16.98
2406-10-04 2406-10-04 | 2406-10-04 | Tube Expander-Reducer 5/8" JIC (7/8"-14 thread) Female x 1/4" JIC (7/16"-20 thread) Male
$4.44
2406-10-06 2406-10-06 | 2406-10-06 | Tube Expander-Reducer 5/8" JIC (7/8"-14 thread) Female x 3/8" JIC (9/16"-18 thread) Male
$4.07
2406-10-08 2406-10-08 | 2406-10-08 | Tube Expander-Reducer 5/8" JIC (7/8"-14 thread) Female x 1/2" JIC (3/4"-16 thread) Male
$2.82
2406-10-12 2406-10-12 | 2406-10-12 | Tube Expander-Reducer 5/8" JIC (7/8"-14 thread) Female x 3/4" JIC (1 1/16"-12 thread) Male
$10.67
2406-12-04 2406-12-04 | 2406-12-04 | Tube Expander-Reducer 3/4" JIC (1 1/16"-12 thread) Female x 1/4" JIC (7/16"-20 thread) Male
$9.15
2406-12-06 2406-12-06 | 2406-12-06 | Tube Expander-Reducer 3/4" JIC (1 1/16"-12 thread) Female x 3/8" JIC (9/16"-18 thread) Male
$6.43
2406-12-08 2406-12-08 | 2406-12-08 | Tube Expander-Reducer 3/4" JIC (1 1/16"-12 thread) Female x 1/2" JIC (3/4"-16 thread) Male
$4.01
2406-12-10 2406-12-10 | 2406-12-10 | Tube Expander-Reducer 3/4" JIC (1 1/16"-12 thread) Female x 5/8" JIC (7/8"-14 thread) Male
$4.44
2406-12-16 2406-12-16 | 2406-12-16 | Tube Expander-Reducer 3/4" JIC (1 1/16"-12 thread) Female x 1" JIC (1 5/16"-12 thread) Male
$6.69
2406-12-20 2406-12-20 | 2406-12-20 | Tube Expander-Reducer 3/4" JIC (1 1/16"-12 thread) Female x 1-1/4" JIC (1-7/8"-12 thread) Male
$40.80
2406-14-06 2406-14-06 | 2406-14-06 | Tube Expander-Reducer 7/8" JIC (1 3/16"-12 thread) Female x 3/8" JIC (9/16"-18 thread) Male
$46.99
2406-14-08 2406-14-08 | 2406-14-08 | Tube Expander-Reducer 7/8" JIC (1 3/16"-12 thread) Female x 1/2" JIC (3/4"-16 thread) Male
$53.25
2406-14-10 2406-14-10 | 2406-14-10 | Tube Expander-Reducer 7/8" JIC (1 3/16"-12 thread) Female x 5/8" JIC (7/8"-14 thread) Male
$35.11
2406-14-12 2406-14-12 | 2406-14-12 | Tube Expander-Reducer 7/8" JIC (1 3/16"-12 thread) Female x 3/4" JIC (1 1/16"-12 thread) Male
$21.02
2406-16-04 2406-16-04 | 2406-16-04 | Tube Expander-Reducer 1" JIC (1 5/16"-12 thread) Female x 1/4" JIC (7/16"-20 thread) Male
$32.33
2406-16-06 2406-16-06 | 2406-16-06 | Tube Expander-Reducer 1" JIC (1 5/16"-12 thread) Female x 3/8" JIC (9/16"-18 thread) Male
$28.88
2406-16-08 2406-16-08 | 2406-16-08 | Tube Expander-Reducer 1" JIC (1 5/16"-12 thread) Female x 1/2" JIC (3/4"-16 thread) Male
$8.81
2406-16-10 2406-16-10 | 2406-16-10 | Tube Expander-Reducer 1" JIC (1 5/16"-12 thread) Female x 5/8" JIC (7/8"-14 thread) Male
$9.73
2406-16-12 2406-16-12 | 2406-16-12 | Tube Expander-Reducer 1" JIC (1 5/16"-12 thread) Female x 3/4" JIC (1 1/16"-12 thread) Male
$7.56
2406-16-14 2406-16-14 | 2406-16-14 | Tube Expander-Reducer 1" JIC (1 5/16"-12 thread) Female x 7/8" JIC (1 3/16"-12 thread) Male
$40.18
2406-16-20 2406-16-20 | 2406-16-20 | Tube Expander-Reducer 1" JIC (1 5/16"-12 thread) Female x 1-1/4" JIC (1-7/8"-12 thread) Male
$20.30
2406-16-24 2406-16-24 | 2406-16-24 | Tube Expander-Reducer 1" JIC (1 5/16"-12 thread) Female x 1-1/2" JIC (3/4"-16 thread) Male
$73.82
2406-20-08 2406-20-08 | 2406-20-08 | Tube Expander-Reducer 1-1/4" JIC (1-7/8"-12 thread) Female x 1/2" JIC (3/4"-16 thread) Male
$101.31
2406-20-12 2406-20-12 | 2406-20-12 | Tube Expander-Reducer 1-1/4" JIC (1-7/8"-12 thread) Female x 3/4" JIC (1 1/16"-12 thread) Male
$16.26
2406-20-16 2406-20-16 | 2406-20-16 | Tube Expander-Reducer 1-1/4" JIC (1-7/8"-12 thread) Female x 1" JIC (1 5/16"-12 thread) Male
$12.77
2406-20-24 2406-20-24 | 2406-20-24 | Tube Expander-Reducer 1-1/4" JIC (1-7/8"-12 thread) Female x 1-1/2" JIC (3/4"-16 thread) Male
$39.04
2406-24-12 2406-24-12 | 2406-24-12 | Tube Expander-Reducer 1-1/2" JIC (3/4"-16 thread) Female x 3/4" JIC (1 1/16"-12 thread) Male
$57.80
2406-24-16 2406-24-16 | 2406-24-16 | Tube Expander-Reducer 1-1/2" JIC (3/4"-16 thread) Female x 1" JIC (1 5/16"-12 thread) Male
$52.17
2406-24-20 2406-24-20 | 2406-24-20 | Tube Expander-Reducer 1-1/2" JIC (3/4"-16 thread) Female x 1-1/4" JIC (1-7/8"-12 thread) Male
$42.72
2406-24-32 2406-24-32 | 2406-24-32 | Tube Expander-Reducer 1-1/2" JIC (3/4"-16 thread) Female x 2" JIC (2 1/2"-12 thread) Male
$80.87
2406-32-20 2406-32-20 | 2406-32-20 | Tube Expander-Reducer 2" JIC (2 1/2"-12 thread) Female x 1-1/4" JIC (1-7/8"-12 thread) Male
$117.42
2406-32-24 2406-32-24 | 2406-32-24 | Tube Expander-Reducer 2" JIC (2 1/2"-12 thread) Female x 1-1/2" JIC (3/4"-16 thread) Male
$61.59
Check the items you wish to purchase, then click


Features:

Material Composition: Fittings from forged or cast pressure resistant carbon steel with a zinc-trivalent anti-corrosion coating
JIC SAE 37° and SAE ORB (O-Ring Boss) conform to SAE J514 technical specifications





Product Details:
Pressure Ratings:
SAE J514 Pressure Ratings
Nom. SAE Dash Size Nom. Tube O.D. Inches 37 Degree Flare Straight Thread Nom. Pipe Size SAE St. Threads Union & Bulkhead (PSI) Fittings With Pipe Threads (PSI)
2 1/8 5/16"-24 1/8" 5000 5000
3 3/16 3/8"-24 1/8" 5000 5000
4 1/4 7/16"-20 1/8" 5000 5000
5 5/16 1/2"-20 1/8" 5000 5000
6 3/8 9/16"-18 1/4" 5000 5000
8 1/2 3/4"-16 3/8" 4500 4000
10 5/8 7/8"-14 1/2" 3500 3000
12 3/4 1 1/16"-12 3/4" 3500 3000
14 7/8 1 3/16"-12 3/4" 3000 2500
16 1 1 5/16"-12 1" 3000 2000
20 1 1/4 1 5/8"-12 1 1/4" 2500 1150
24 1 1/2 1 7/8"-12 1 1/2" 2000 1000
32 2 2 1/2"-12 2" 1500 1000
NOTE: Since many factors influence the pressure at which a system will or will not perform satisfactory, values shown in this table should not be construed as guaranteed minimum.
Dimensional Drawings:
Product ID Y HEX T1 D T2 L
2406-04-02 0.563 7/16-20 0.063 5/16-24 1.042
2406-04-06 0.688 7/16-20 0.172 9/16-18 1.15
2406-04-08 0.813 7/16-20 0.391 3/4-16 1.251
2406-05-04 0.625 1/2-20 0.172 7/16-20 1.159
2406-06-04 0.688 9/16-18 0.172 7/16-20 1.175
2406-06-06 0.688 9/16-18 0.297 9/16-18 1.181
2406-06-08 0.813 9/16-18 0.297 3/4-16 1.282
2406-08-04 0.875 3/4-16 0.172 7/16-20 1.3
2406-08-06 0.875 3/4-16 0.297 9/16-18 1.306
2406-08-10 0.938 3/4-16 0.391 7/8-14 1.508
2406-08-12 1.125 3/4-16 0.609 1-1/16-12 1.614
2406-08-16 1.375 3/4-16 0.844 1-5/16-12 1.661
2406-10-04 1 7/8-14 0.172 7/16-20 1.394
2406-10-06 1 7/8-14 0.297 9/16-18 1.4
2406-10-08 1 7/8-14 0.391 3/4-16 1.501
2406-10-12 1.125 7/8-14 0.484 1-1/16-12 1.708
2406-12-04 1.25 1-1/16-12 0.172 7/16-20 1.456
2406-12-06 1.25 1-1/16-12 0.297 9/16-18 1.462
2406-12-08 1.25 1-1/16-12 0.391 3/4-16 1.563
2406-12-10 1.25 1-1/16-12 0.484 7/8-14 1.664
2406-12-16 1.5 1-1/16-12 0.844 1-5/16-12 1.817
2406-12-20 1.688 1-1/16-12 1.078 1-5/8-12 1.864
2406-14-06 1.375 1-3/16-12 0.297 9/16-18 1.525
2406-14-08 1.375 1-3/16-12 0.391 3/4-16 1.626
2406-14-10 1.375 1-3/16-12 0.484 7/8-14 1.727
2406-14-12 1.375 1-3/16-12 0.609 1-1/16-12 1.833
2406-16-04 1.5 1-5/16-12 0.172 7/16-20 1.566
2406-16-06 1.5 1-5/16-12 0.297 9/16-18 1.572
2406-16-08 1.5 1-5/16-12 0.391 3/4-16 1.673
2406-16-10 1.5 1-5/16-12 0.484 7/8-14 1.774
2406-16-12 1.5 1-5/16-12 0.609 1-1/16-12 1.880
2406-16-14 1.5 1-5/16-12 0.719 1-3/16-12 1.906
2406-16-20 1.688 1-5/16-12 1.078 1-5/8-12 1.974
2406-16-24 2 1-5/16-12 1.313 1-7/8-12 2.099
2406-20-12 2 1-5/8-12 0.609 1-1/16-12 1.926
2406-20-16 2 1-5/8-12 0.844 1-5/16-12 1.973
2406-20-24 2 1-5/8-12 1.313 1-7/8-12 2.145
2406-24-12 2.250 1-7/8-12 0.609 1-1/16-12 2.052
2406-24-16 2.250 1-7/8-12 0.844 1-5/16-12 2.099
2406-24-20 2.250 1-7/8-12 1.078 1-5/8-12 2.146
2406-24-32 2.625 1-7/8-12 1.313 2-1/2-12 2.521
2406-32-24 2.875 2-1/2-12 1.313 1-7/8-12 2.521
Competitor Cross Reference:
INTERCHANGEABLE WITH:
SHF AEROQUIP PARKER SSP (Stainless Only) SAE MS
2406-04-06 - - - 70123 MS39323
2406-04-08 - - - 70123 MS39323
2406-01-10 - - - 70123 MS39323
2406-06-04 221501-6-4 6-4 TRTXN J6-4TER1 70123 MS39323
2406-06-08 - - - 70123 MS39323
2406-08-04 221501-8-4 8-4 TRTXN J8-4TER1 70123 MS39323
2406-08-06 221501-8-6 8-6 TRTXN J8-6TER1 70123 MS39323
2406-08-10 - - - 70123 MS39323
2406-08-12 - - - 70123 MS39323
2406-10-04 221501-10-4 10-4 TRTXN J10-4TER1 70123 MS39323
2406-10-06 221501-10-6 10-6 TRTXN J10-6TER1 70123 MS39323
2406-10-08 221501-10-8 10-8 TRTXN J10-8TER1 70123 MS39323
2406-10-12 - - - 70123 MS39323
2406-12-04 221501-12-4 12-4 TRTXN J12-4TER1 70123 MS39323
2406-12-06 221501-12-6 12-6 TRTXN J12-6TER1 70123 MS39323
2406-12-08 221501-12-8 12-8 TRTXN J12-8TER1 70123 MS39323
2406-12-10 221501-12-10 12-10 TRTXN J12-10TER1 70123 MS39323
2406-12-16 - - - 70123 MS39323
2406-16-04 221501-16-4 16-4 TRTXN J16-4TER1 70123 MS39323
2406-16-06 221501-16-6 16-6 TRTXN J16-6TER1 70123 MS39323
2406-16-08 221501-16-8 16-8 TRTXN J16-8TER1 70123 MS39323
2406-16-12 221501-16-12 16-12 TRTXN J16-12TER1 70123 MS39323
2406-16-20 - - - 70123 MS39323
2406-20-06 221501-20-06 20-6 TRTXN J20-6TER1 70123 MS39323
2406-20-08 221501-20-08 20-8 TRTXN J20-8TER1 70123 MS39323
2406-20-12 221501-20-12 20-12 TRTXN J20-12TER1 70123 MS39323
2406-20-16 221501-20-16 20-16 TRTXN J20-16TER1 70123 MS39323
2406-24-08 221501-24-08 24-8 TRTXN J24-8TER1 70123 MS39323
2406-24-12 221501-24-12 24-12 TRTXN J24-12TER1 70123 MS39323
2406-24-16 221501-24-16 24-16 TRTXN J24-16TER1 70123 MS39323
2406-24-20 221501-24-20 24-20 TRTXN J24-20TER1 70123 MS39323
2406-32-24 221501-32-24 32-24 TRTXN J32-24TER1 70123 MS39323
